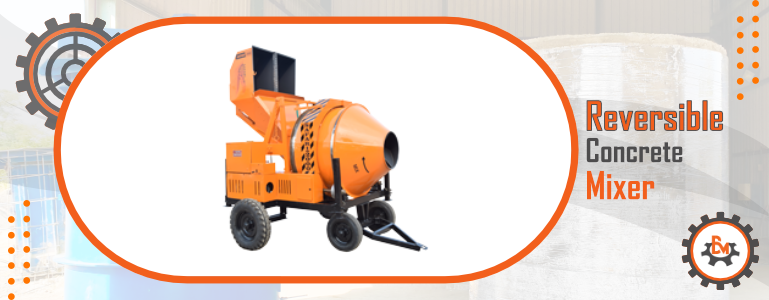

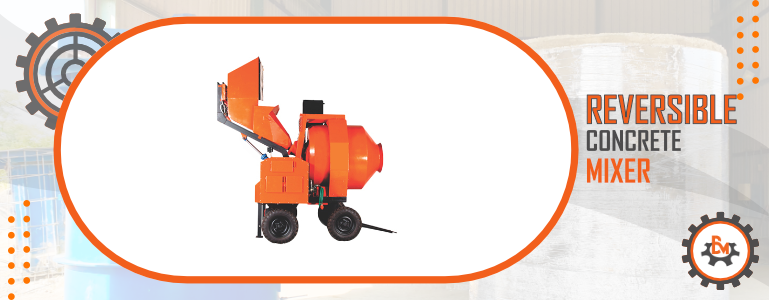

Reversible Concrete Mixer

Reversible concrete mixer has containers wherein sand, concrete and different totals are carefully gauged and stacked in its rock solid blender drum. In this reversible drum, concrete is blended in forward pivot and released backward turn. The choices of single canister, three receptacle and four containers are according to prerequisite.

Features
Technical Data

Low support because of Planetary Gear Box
Heavy Duty Twin Rollers
Extra Chassis Support
Centralized Grease Lubricating System
Wider Wheel Track
Drum and Mechanical Jack in 5 mm M.S.
Smart Hopper Design to decrease spillage
Energy Efficient and Cost Saving
Automatic Water Control by means of water meter
Optional four receptacle framework accessible
Reversible Drum Concrete Mixers with SCADA empowered

Heavy Robtus design.
Plant can be erected & commissioned within two days.
Remarkably cost efficient.
Plant operation is very silent & with clean surrounding.
Very fewer maintenance of plant, due to less wear and tear parts.
Complete plant can be transported in one 40 foot trailer.
Online Printing System.
Discharge Belt Conveyor.
Fly Ash Feeding System
Cement Storage Silo
Computer SCADA System with software.
Touch Screen with provision of USB for data back up.

BM reversible concrete mixer can be utilized in blending dry hardness, plastic light. Total cement with debris, lime mortar are generally utilized in building destinations, street, spans.

Item	BM350	BM500	BM750
Charging Volume (L)	560	800	1200
Releasing Volume (L)	350	500	750
Limit (m3/h)	10~14	18~20	20~22
Pivoting Speed (r/min)	14	14	13
Blending Motor Power	5.5kw	11kw	15kw
Lifting Motor Power	4.5kw	5.5kw	7.5kw
Water Pump Power	0.55kw	0.75kw	1.1kw
Lifting Speed (m/min)	8	8	8
Complete Weight (KG)	1950	3100	4200
Max. Total Size(mm)	60	60-80	60-80
Measurement (L×W×H) mm	2766x2140x3000	5226x2200x5460	6116x2056x6060
