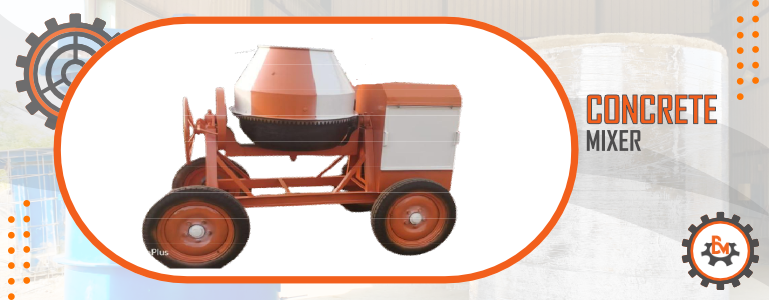

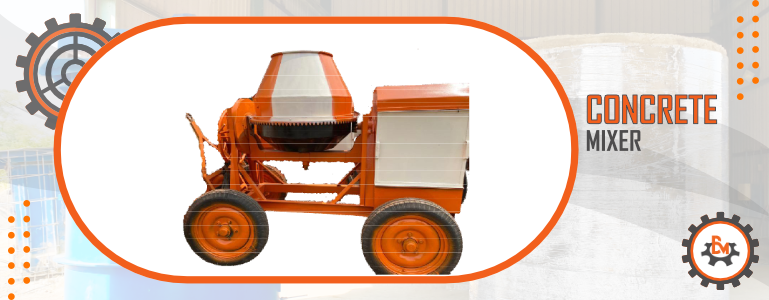

Concrete Mixer

The B. M. Equipment's arrangement of Concrete Mixer Machine are the most excellent one bag concrete mixer machine and is utilized to blend concrete, sand and different aggregates to create concrete of the necessary evaluation.

Features
Technical Data

Heavy Duty Cast Iron Drum empowers simple shifting of drum in this way diminishing weariness for the laborer and expanding yield significantly.
Special stage gave on working side to advantageous and safe activity of the mixer machine.
Tire Axle with locking framework
Brand New Pneumatic Tires Available.
Heavy Duty M.S. Channel Chassis
Without Hopper and smaller, thus simple to move and utilize

Heavy Robtus design.
Plant can be erected & commissioned within two days.
Remarkably cost efficient.
Plant operation is very silent & with clean surrounding.
Very fewer maintenance of plant, due to less wear and tear parts.
Complete plant can be transported in one 40 foot trailer.
Online Printing System.
Discharge Belt Conveyor.
Fly Ash Feeding System
Cement Storage Silo
Computer SCADA System with software.
Touch Screen with provision of USB for data back up.

BM reversible concrete mixer can be utilized in blending dry hardness, plastic light. Total cement with debris, lime mortar are generally utilized in building destinations, street, spans.

MODEL NO.	BM 100 – MIXHF
Capacity	Unmixed: 10 cft. Blended: 7 cft
Volume	450 Litres
Prime Mover	6.5 HP air cooled HSD diesel motor/3 HP 3 stage Electric Motor
Hopper	Without hopper, hand feed
Drum Speed	18 rpm
Wheels	Brand new 500 x 19 pneumatic tire with centre point and bearing framework, and squeezed steel plate edges – 4 No’s
Handy Yoke	100x100x5 mm C Section M.S. channel, Bearing System
Chassis	Heavy Duty M.S. 100 x 50 x 5 mm Channel suspension
Drive Chain	Rolon brand
Mixing Drum and Blades	Heavy Duty CI Lower drum 3.15 mm M.S. upper drum and uncompromising M.S. sharp edges for blending
Drum Type	Tilting
Motor Cabin	16 G (1.6 mm) Thick
Dimensions	L 2470 x W 1270 x H 1900 mm
Weight	900 kg
