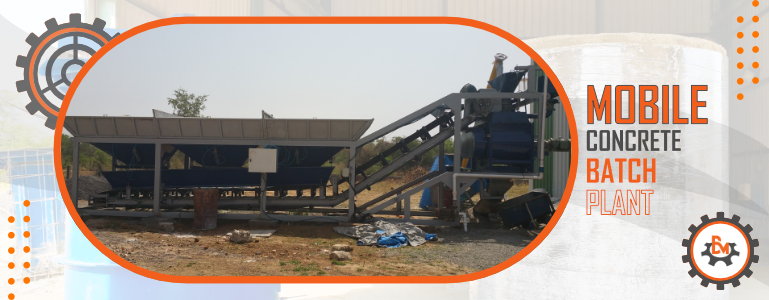

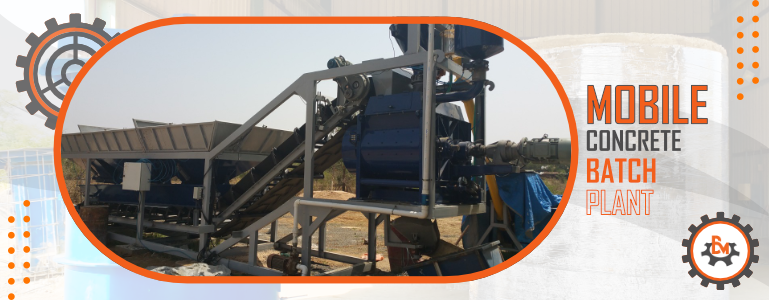

Mobile Concrete Batch Plant

Mobile Concrete Batching Plant is the new type of moveable concrete batching plant that designed and produced by our our company which have adopted advanced technology and scientific achievements from domestic and abroad, combine our abundant experience of produce batching plant. It is one of the best mobile concrete batching plant in India. It’s structure is compact and reasonable.

Most of the functions like batching system, electric weighing system, aggregate lifting system, mixing system are integrated into a trailer unit. So it is convenient to move and easy to install. It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station.

The B. M. provides Mobile Concrete Batching Plant on well-defined parameters of quality such as Strength, Capacity, and Functionality. We have a team of excellent professionals involved in meeting high demands of our valuable clients.

Available in 12/15/18/20/25m3/hr. capacity.
Mixer – Twin Shaft or PAN type, for continuous mixing.
Mixer having Electronic load Cell type weighing system.
Loading of Aggregate/Sand Hoppers by Wheel loader/ Conveyors/ Manually.
Inbuilt Water and Additive tank.
Fully Automatic Electronic operation with integrated PLC / PC Control and Remote function.
Entire plant can be transported in single 40 feet trailer.
Rigid construction of main chassis; fabricated from rolled mild steel material.
Replaceable liner Tiles and Tips in to the mixer.
Fully automatic plant with Electronic weighing of Agg./Sand/Water/Cement.
PLC based control panel with integral computerized batch controller accommodates 99 different mix recipes.
Maximum weighing accuracy.
Plant only requires Electric Power Supply, Water Piping, Aggregate/Sand feeding.
Easy transportation & shifting by toeing also.

Very slim and compact design.
Plant can be erected & commissioned within two days.
Remarkably cost efficient.
Plant operation is very silent & with clean surrounding.
Very fewer maintenance of plant, due to less wear and tear parts.
Complete plant can be transported in one 40 foot trailer.
Online Printing System.
Discharge Belt Conveyor.
Fly Ash Feeding System
Cement Storage Silo
Computer SCADA System with software.
Touch Screen with provision of USB for data back up.

Specification	Parameters
Model	BM-20
Rated Productivity	20m3/h
Main Mixer	Twin Shaft
Max. Aggregate Diameter	60mm
Capacity of Aggregate Bin	3x11m3
Aggregate Measuring and Conveying Mode	Belt Conveyer
Measuring Scope & Accuracy of Aggregate	3000Kg �2%
Measuring Scope & Accuracy of Cement	600Kg �1%
Measuring Scope & Accuracy of Water	400Kg �1%
Measuring Scope & Accuracy of Additives	50Kg �1%
General Power	50Kw
Total Weight	10T
Transport Mode	Pulled by a truck chassis
Outline dimension (In Service)	17.7mX3.6mX8.2m
Outline dimension (In Traveling)	18.3mX2.4mX4.35m
Discharge Height	1.8 m
Powder Material Silos(for customers’ choice)	Chosen according to customer’s demands.
Screw Conveyers(for customers’ choice)	Chosen according to customer’s demands.
